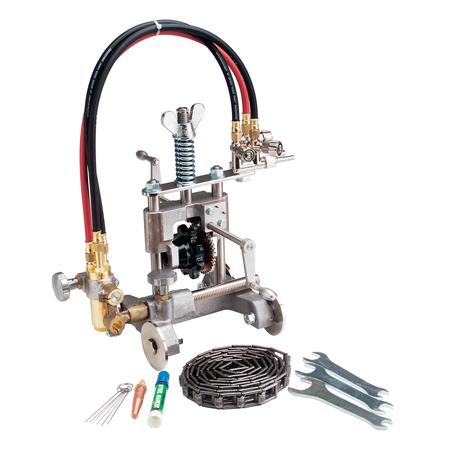

Cigweld Pipemate Gas Pipe Cutting Machine
Accurate square and bevel edge circumferential flame cutting pipe cutting machine. Designed for simple operation with optimum stability and a smooth dependable drive, the Pipemate™ is fully adjustable to any cutting length. The pipe cutting machine control valves are located away from the heat and changeover is quick between differing diameters.
The pipemate gas cutting unit comes with a size 1 acetylene nozzle, tip cleaners, spanners and a 2.4m chain
Specifications:
| Pipe Diameter | 100-600mm |
| Pipe Wall Thickness | up to 50mm |
| Weight | 9kg |
₦3,631.64
Accurate square and bevel edge circumferential flame cutting pipe cutting machine. Designed for simple operation with optimum stability and a smooth dependable drive, the Pipemate™ is fully adjustable to any cutting length. The pipe cutting machine control valves are located away from the heat and changeover is quick between differing diameters.
The pipemate gas cutting unit comes with a size 1 acetylene nozzle, tip cleaners, spanners and a 2.4m chain
Features: pipe cutting machine
- Accurate square and bevel edge circumferential flame cutting
- Smooth dependable drive Designed for optimum stability
- Control valves located away from heat
- Designed for simple operation
- Fully adjustable to any cutting length
- Graduated scale for accurate bevelling
- Quick changeover between differing diameters
- pipe gas cutting machine
pipe cutting machine
Blowpipe
COMET 3
Extension Barrel
307123, 307124, 307125
Gas Consumption (Fuel)
41-55 l/min
Gas Consumption (Oxy)
45-58 l/min
Heat Output
180 MJ/HR
Mixer
304003
Model Number
SHA1
Operating Pressure (Fuel)
100 kPa
Operating Pressure (Oxy)
150 kPa
Tip Size
8×12
