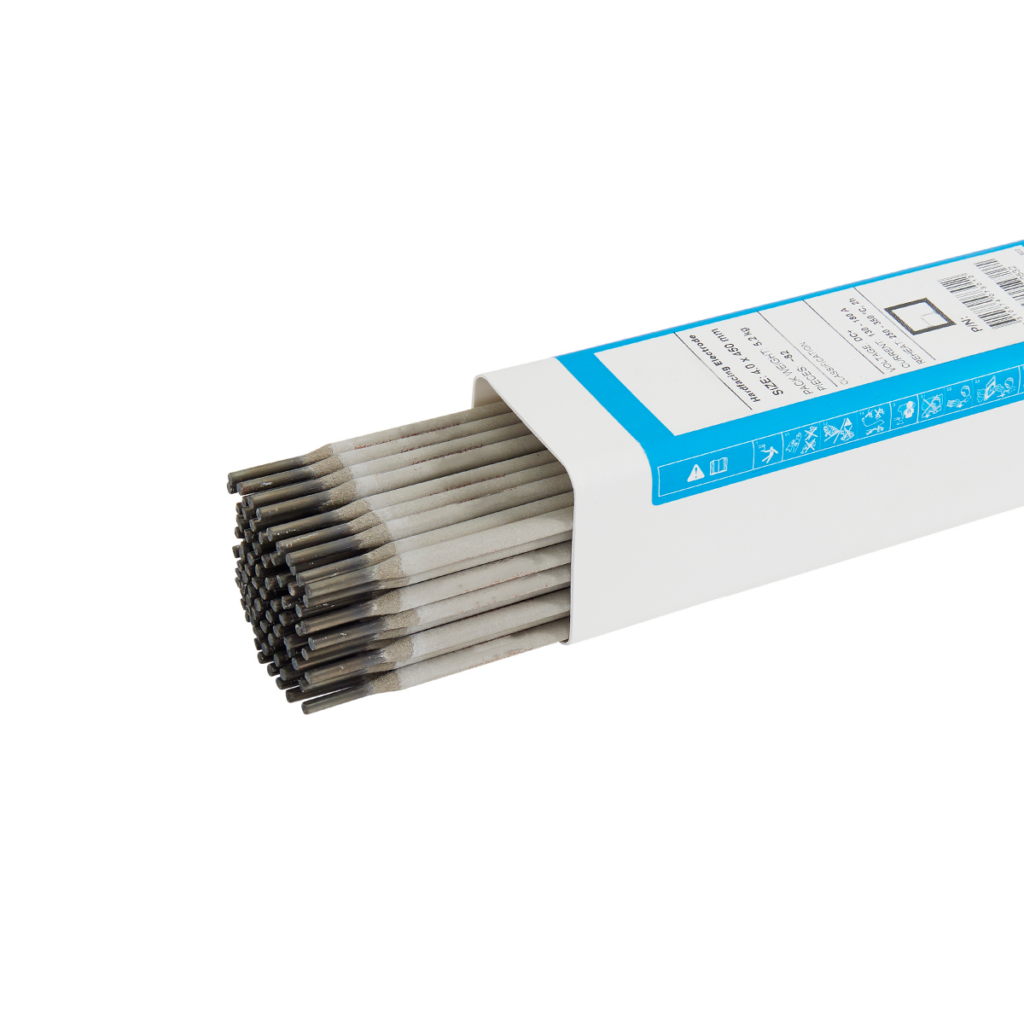

Cigweld Ferrocraft 22 3.2mm 5.8kg Welding Electrode

Cigweld Ferrocraft 22 3.2mm 5.8kg Welding Electrode

Ferrocraft 22 is a rutile type high iron powder electrode for the higher productivity fillet and butt welding of mild steel in all down hand ( flat and horizontal-vertical ) positions. Slag lift and “side wall” wash at weld toes are superb and welding speeds are approximately double those of conventional electrodes of equal size and length.

Packaging Data

611253N – 3.2mm – 5.8kg Pack

Features & Benefits

• Rutile Type High Iron Powder Electrode.
• High Productivity Fillet and Butt Welding in All Downhand Positions.
• Self Releasing Slag.

Classifcations
ISO AS/NZS 4855: E 4924 A
AWS/ASME-SFA A5.1: E7024

Applications
Suitable for ‘on site’ repair, maintenance and fabrication jobs where the iron powder addition gives improved useability

Welding Positions
All downhand positions

Typical all Weld Metal Analysis
C: 0.05%
Mn: 0.75%
Si: 0.25%

Typical all Weld Metal Mechanical Analysis
Yield Stress 440 MPa
Tensile Strength 512 MPa
Elongation 25%
CVN Impact Values 60J av @ 0°C.
