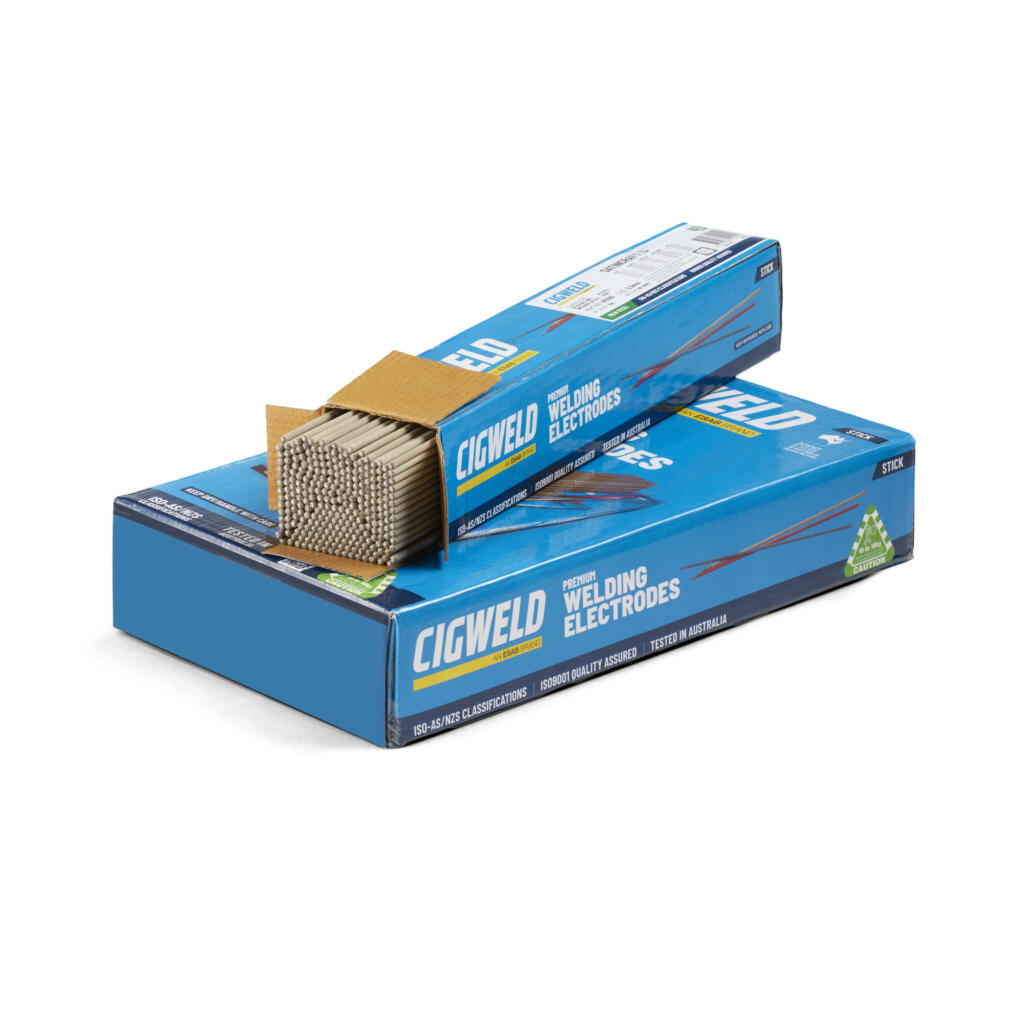

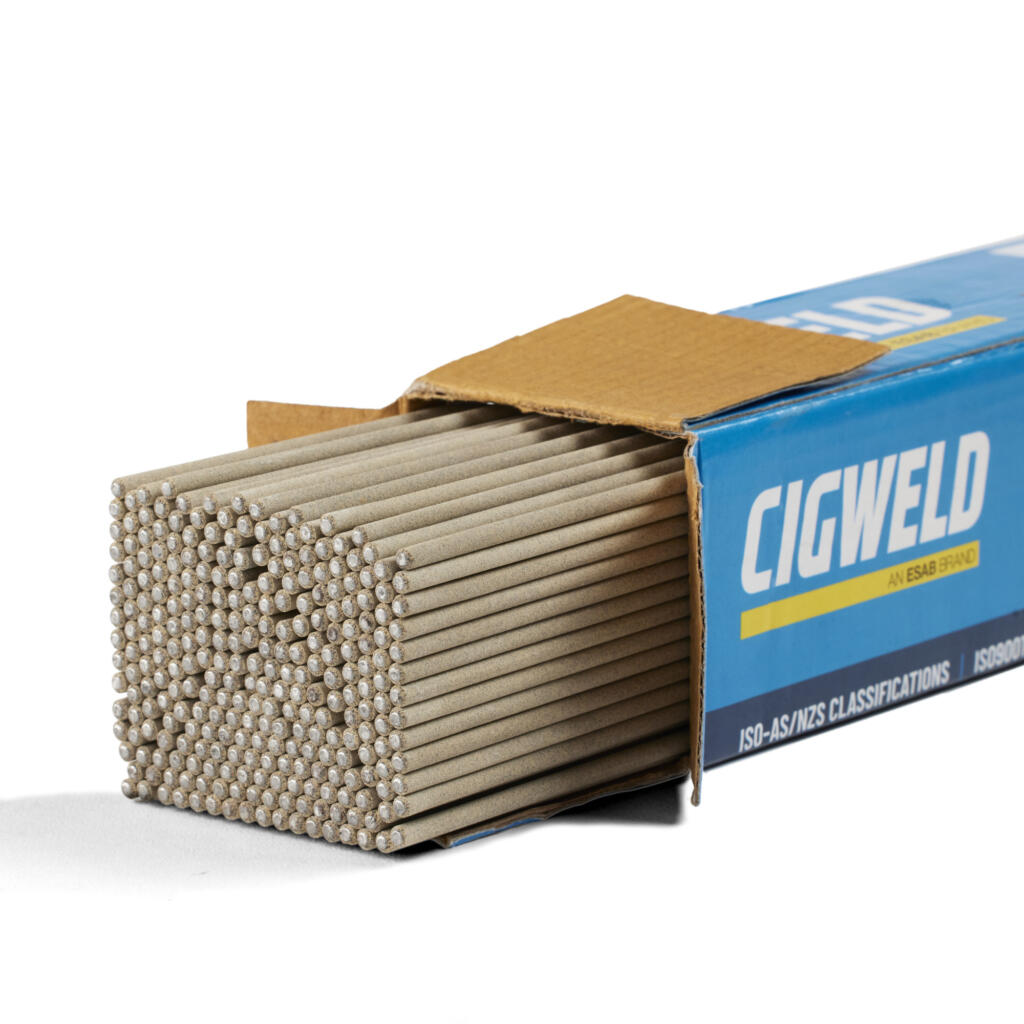

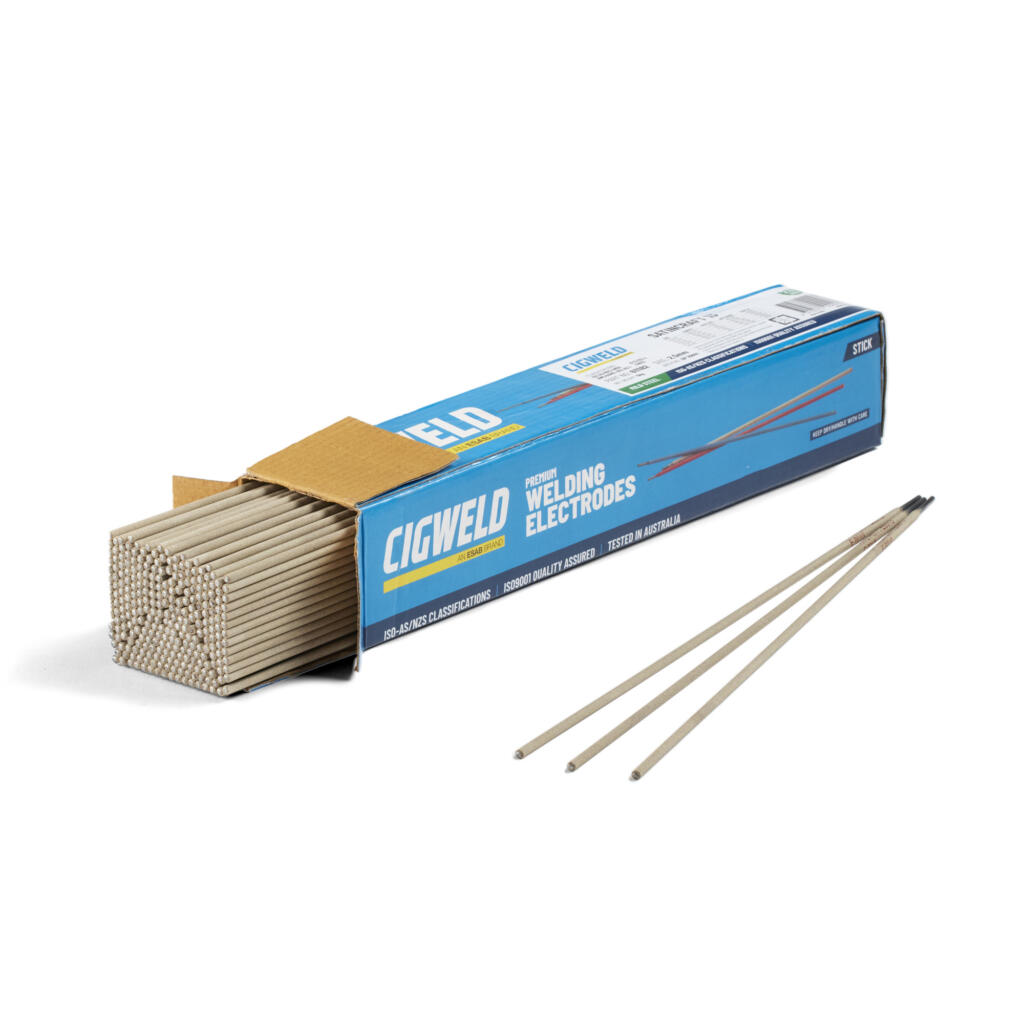

Cigweld Ferrocraft 61 2.5mm 5kg Welding Electrode

Cigweld Ferrocraft 61 2.5mm 5kg Welding Electrode

Ferrocraft 61 is a smooth running, user-friendly hydrogen controlled electrode.

Packaging Data

611342 – 2.5 mm – 5kg Pack

Features & Benefits

• Basic Coated, Hydrogen Controlled E4818 / E7018 Type Electrode
• Superb AC/DC Operator Appeal
• Excellent Out-of-Position Welding
• Reliable Impact Properties to -30

Classifications
ISO AS/NZS: 4855 B E4918 A U H10
AWS/ASME-SFA A5.1: E7018

Applications
Ferrocraft 61 is specifically designed for all positional (especially vertical-up) fillet and butt welding applications on heavier steel sections under high restraint such as machinery parts and pressure vessels.

Welding Positions
All positional – except vertical down

Typical All Weld Metal Analysis
USING ARGON + 18-25% CO2 SHIELDING GAS:
C: 0.06%
Mn: 1.45%
Si: 0.45%
S: 0.010%
P: 0.012%

Typical All Weld Metal Mechanical Properties
Yield Stress 450 MPa
Tensile Strength 545 MPa
Elongation 29%
CVN Impact Values 160 J av @ -20°C.
130 J av @ -30°C
